QSL1000 Fjäderlyftbord & QAL1000 Snabbkrockkuddelastare

Funktionerna hos roterande arbetsbord:

  • Bibehåll automatiskt en last på den idealiska höjden för manuell lastning och lossning
  • Kräver ingen ström
  • Stabil design kräver inget golvlager.
  • Liten bas gör att verk kan stå nära de industriella saxliftarna i vilken position som helst.
  • Lätt att flytta till valfri plats med bordsskydd som tillval utan gaffeltruck.

Compare with general lift tables, this QSL1000 series Spring Level Loader  and QAL1000 airbag pallet positioner  is a rotating lift table which can automatically maintain a load at the ideal height for manual loading and unloading without any electric or any manual operation, this lift table with rotate plate can automatically maintain at the top of the load as the working height to  reduce the discomfort of long-term bending just with the spring force of the spring/airbag and the gravity of the cargo.

Videoshow:





SpecificationDetailsDifference
  • i-Lift Nej13136011313604
    ModellQSL1000QAL1000
    Kapacitetkg (Ib.)200-2000(440-4400)100-2000(220-4400)
    Komprimerad höjdmm (in.)240(9.4)265(10.4)
    Utökad höjdmm (in.)710(28)710(28)
    Roterande ring, utanför dia.mm (in.)1110(44)1110(44)
    Roterande ring, inre dia.mm (in.)1035(40.7)1035(40.7)
    Base Ramlängdmm (in.)1150(45.3)1150(45.3)
    Basrams breddmm (in.)930(36.6)930(36.6)
    AlternativLyftbord Mover

QAL1000 Detaljer:

It has an air charging port and pressure regulating knob, so you can adjust the height by adjust the air pressure. This can make up for the problem of oil leakage from ordinary Stationary Lift table

QSL1000 Details:

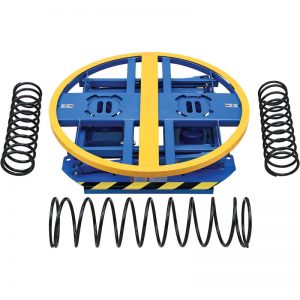

The frame of the Spring Activated Lift Table can handle loads of up to 4400 lbs. In order to adapt the unit for different pallet loads, the springs are changed. The springs are chosen to match the weight and height of a fully loaded pallet. A unit may have one to three springs. Each time the pallet weight or pallet height is changed, the springs may also need to be  changed. Instructions will show you how the springs are selected. Each spring is color-coded with paint mark at one end.

Den innehåller 3 fjädrar med olika storlek, du kan gruppera dem fritt beroende på kapacitet och höjd du behöver. Utrustat med en ficka för gaffeltruck möjliggör transport mellan olika arbetsområden. “Lyftbordsmotor” är också valfritt för de områden där gaffeltrucken inte är tillgänglig.

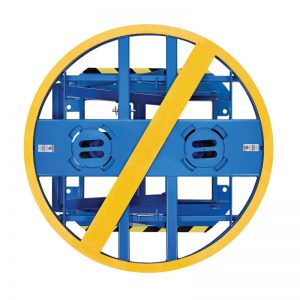

Load weight range is 440 lbs. to 4,400 lbs. The Spring Pallet Positioner allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of theTurntable platform.

Vad är skillnaden mellan Airbag-lastare eller fjäderbelastat saxlyftbord?

  • Stabilitet: compared with the Spring Pallet lever loader , the Airbag Level Loader is more stable, not easy to bump, and the shock absorption performance is better.
  • Olika växeljusteringsmetoder: the Spring Pallet scissor Lift table  has 3 springs, which can only be combined into different three loads by different combinations of three springs; The Airbag Pallet handing lift table can be adjusted arbitrarily by changing the air pressure.
  • Lastområde is different: the minimum load of spring Industrial Scissor Liftsis 440KG, the minimum load of air Skid Carousel Positioner can be less than 100KG, or even smaller.
  • Olika justeringsmetoder: it is convenient to adjust the load of the airbag Pallet leveller. It only needs to deflate and inflate, and it can be completed under the condition of heavy objects on the table, without removing the table. But the spring Pallet Positioner  needs to be removed from the table to replace the spring collocation to adjust the load.
  • Krockkuddeplattform måste vara utrustad med luft pump.

It is also a rotating platforma it can realize the operation of each side by rotating the surface of the spring lifters, so the workers can easily complete all loading and unloading works just keep the same posture. Not only improves productivity but also protects workers from long time bending.

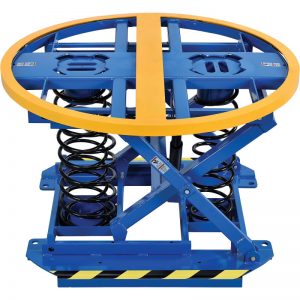

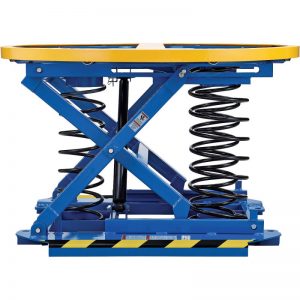

As weight is added to the Spring Actuated Level Loader , it causes the springs to compress, lowering the height of the platform. As weight is removed, the springs expand, raising the height of the lift and rotate table . Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.
