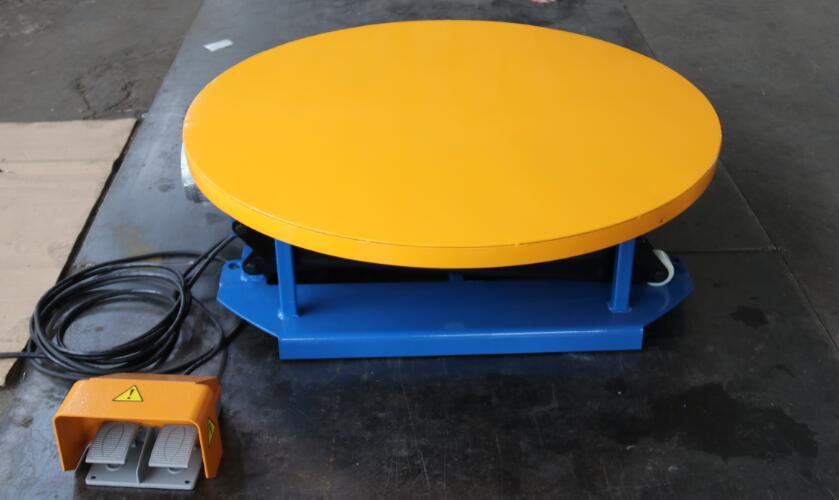

This HRL series lift table with a carousel turnable (rotating lift table) is a lift table with a rotating platform designed from the ground up with the operator in mind, placing the load where the operator determines the most comfortable working height.It doesn't matter how short or tall the individual is, since the operator determines the most comfortable working height. The Roto-Max provides complete flexibility to do the most ergonomically safe job with maximum efficiency.
The stationary scissor lift table is an electric fixed turntable that can lift or lower the rated load. The product features an integral turntable top, hand control, control cord, and power cord. Whether the load is one pound or 4400 lbs, the positioner height remains the same until the individual requests a change. With a lowered height of only 11.8", an operator has easy access to the top layer of product. The raised height is ideally suited for most applications., it can be rotated by 360 degree.

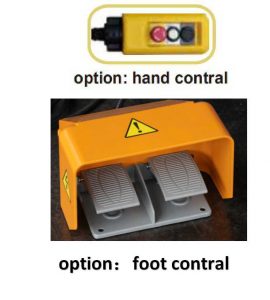

option:hand contral or foot control for Electric lift table with manual rotatingThe stationary lift table with a carousel turntable is extra wide at the pivot point. Its contoured logs combine great strength with lower collapsed height. All pivot points have hardened pins that operate in lubricated-for-life, virtually maintenance-free bushings.
Den elektriska skivspelarlastaren har modeller HRL1000, HRL2000 med kapacitet 1ton, 2ton.
▲ i-Lift skivspelare i stålkarusellstål hjälper till att rotera pallarna för att underlätta sträckning.
▲ Förbättra anställdas säkerhet genom att lyfta laster exakt till en bekväm arbetshöjd.
▲ Hjälp till att öka produktiviteten samtidigt som det hjälper till att minska skador på grund av böjning och räckvidd.
▲ Hand- eller fotkontroll för tillval.
▲ Denna modell kan användas i ovanför golv eller i golv.
option:hand control with electric lift&rotate functioni-lift Nej | 1313605 | 1313606 | |
Modell | HRL1000 | HRL2000 | |
Kapacitet | kg (Ib.) | 1000(2200) | 2000(4400) |
Min.height | mm (in.) | 330(13) | |
Maximal höjd | mm (in.) | 710(28) | |
Roterande ring, utanför dia. | mm (in.) | 1110(44) | |
Basramens längd | mm (in.) | 930(36.6) | |
Basramens bredd | mm (in.) | 920(36.2) | |
Nettovikt | kg (Ib.) | 208(457.6) | 217(477.4) |
Nätdel | 380V / 1.1kw | 380V / 2,2 kW | |
Alternativ | Lifting Mode | Hand Control/Foot Control | |
Rotating Mode | Hand/Electric |
